प्रमुख विक्रय बिंदु:उच्च उत्पादकता, लंबी सेवा जीवन, प्रतिस्पर्धी मूल्य, संचालित करने में आसान
वजन (किग्रा):2000
प्रमुखता देना:
24D vertical wire drawing machine
,
copper wire fine drawing machine
,
vertical type wire drawing machine
मूलभूत जानकारी
उत्पत्ति के प्लेस:जियांग्सू, चीन
ब्रांड नाम:DURA
भुगतान & नौवहन नियमों
गेलरी

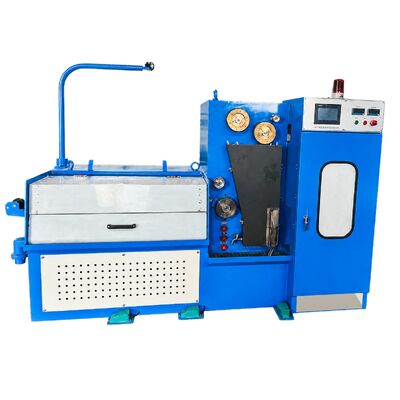

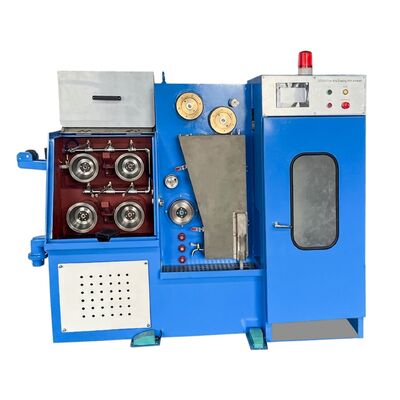

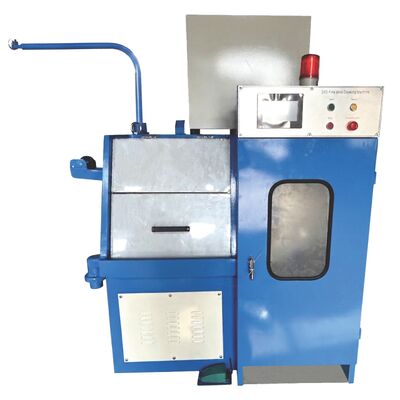

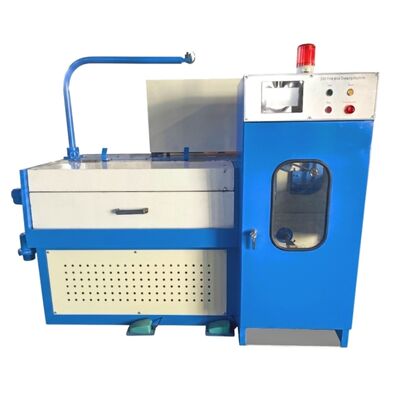

24D Vertical Type Copper Wire Fine Drawing Machine
उत्पाद विवरण
Product descriptions from the supplier Power Control: Dual Inverter Control Inlet Dia. (mm): Max. 1.0mm Outlet Dia. (mm): 0.08-0.25mm Max Die No.: 24 Max Line Speed: 2500m/min Frame Structure: Iron Cast Drawing Capstan: Ceramic Sprayed Capstan Mechanical Reduction Rate: 13% Surface Reduction Rate of Fixed Speed Wheel: 8% Main Motor Power: 11KW Take up Motor Power: 3.7KW Transmission Type: By Flat Belt Take Up Bobbin Size: D300 Traversing Type: Synchronous Motor + Belt Take Up
