Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing

1
MOQ
Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
इनलेट व्यास: 0.75~2.5मिमी
आउटलेट व्यास: 2.5 ~ 6.5 मिमी
वोल्टेज: 380/415/440/220
शक्ति: 11~18KW
DIMENSIONS: 1520x810x1700मिमी
वज़न: 1500kgs
पुली प्रकार: ओटो
मशीन का प्रकार: सूखी प्रकार
अधिकतम ड्राइंग पास: 1-10
तन्यता ताकत: >110 किग्रा/मिमी2
अधिकतम तार व्यास: 6.5 mm
न्यूनतम व्यास: 0.75 मिमी
अधिकतम कमी प्रतिशत: 30%
अधिकतम ब्लॉक गति: 245 मीटर/मिनट
कुल शक्ति: 18.5-30kw
प्रमुखता देना:

Competitive Price Wire Drawing Machine

,

One Year Warranty Pulley Type Wire Drawing Machine

,

Dry Type OTO Wire Drawing Machine
मूलभूत जानकारी
उत्पत्ति के प्लेस: जियांग्सू, चीन
ब्रांड नाम: DURA
प्रमाणन: as per customer's request
भुगतान & नौवहन नियमों
उत्पाद विवरण
Pulley Type Wire Drawing Machines

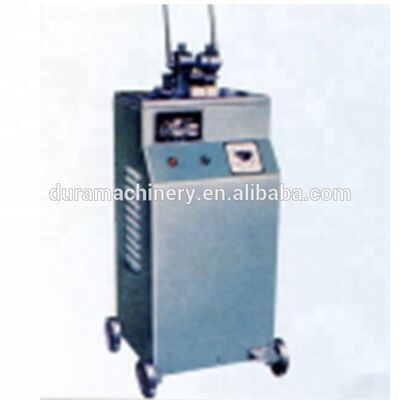

Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 0
Pulley Type Wire Drawing Machine
Usage
This machine is ideal for drawing high-, medium-, and low-carbon steel wire, as well as copper, aluminum, and alloy wire. It is widely used in nail, screw, and rivet manufacturing factories.
Structure
The equipment consists of a main reduction box, die casing, wheel frame, wire brace, and electrical control system. The spinning drawing blocks are driven by JZT or Y series motors, with gear coupling running changeful gears to reduce speed. The drawing blocks are vertically fixed in a sealed box body, with gear pairs lubricated with oil. A cooling device is installed in the inter-wall of the block to lower residual heat on the surface.
The machine operates with crawl or linkage. A safety halt gear is installed at the position of the operation block.
Technical Specifications
Item Unit LW-n/560 LW-n/450 LW-n/350
Max. drawing pass (n) n: 1 - 10 n: 1 - 8 n: 1 - 8
Tensile strength of wire rod Kg/mm² >110 128 >140
Max. dia. of wire rod mm 6.5 3.4 2.5
Min. dia. of finished wire mm 2.5 1 0.75
Typical configuration -- LW1-6/560 LW1-7/450 LW1-6/350
Max. average reduction percent % 30 20 21
Designed total reduction percent % 78-88.5 77.9 78
Max. speed of block m/min. 245 (block 6) 346.9 (block 7) 200 (block 6)
Total power kw 18.5-30 7.5-11 7.5-11
Weight kg 2000 1500 1000
Overall dimensions (L×W×H) mm 1700x1150x1750 1520x810x1700 1400x800x1500
Other machines and accessories for wire drawing production are available.

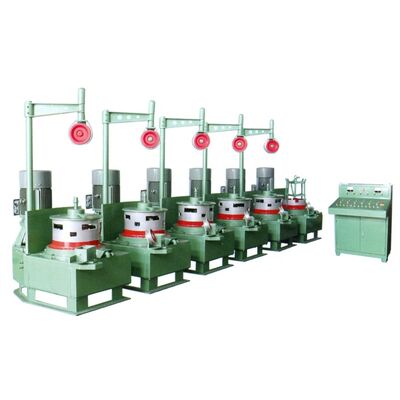

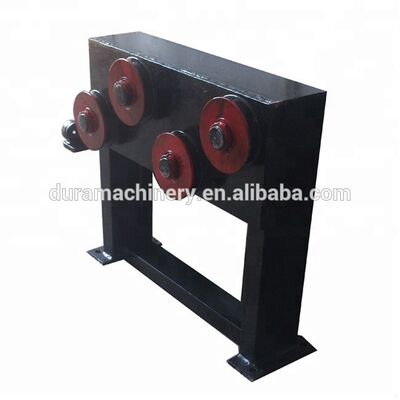

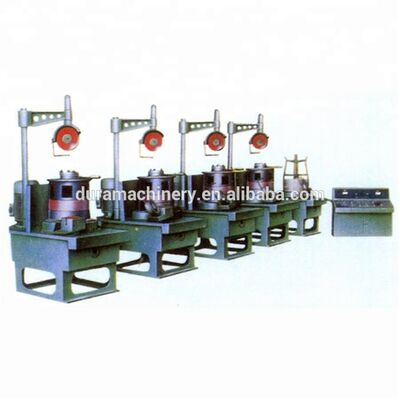

Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 1 Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 2 Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 3
Packing & Shipping
Default packing: nude package.
After Sales Service
Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 4
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • View our Factory
Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 5
After-Sales Service
  • Free training on how to install the machine
  • Training on how to operate the machine
  • Engineers available to service machinery overseas
Company Introduction
Founded in April 2011, WUXI TRIPOD MACHINERY was established to confront new challenges and strive to satisfy customers' diversified demands with optimized service. With ever-increasing export activities and rich technical background from our staff members, we have successfully exported our products to Southeast Asia, the Middle East, Africa, East Europe, and South America.
Today we not only conduct export business with an annual turnover exceeding 3 million dollars, but also handle import business. WUXI TRIPOD MACHINERY, being one of your reliable choices, provides opportunities for success and creates pathways to greater benefits for your purchase.
Our Aim
We strive to be the eyes of purchasers, brain aide of decision-making, and hand of inspection on finished products.
Our Motto
Effort is the base of ongoing business, credit creates the essence of trade expansion.
Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 6 Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 7 Pulley Type Wire Drawing Machine with Competitive Price, One Year Warranty and Dry Type for Wire Processing 8
