Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production

1
MOQ
US$16,200
कीमत
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
उत्पादन क्षमता: 800 ~ 2000
शक्ति: 1.5 किलोवाट
वज़न: 1500 किलोग्राम
वेल्डिंग गति: 1250-2000 पीसी/मिनट, 800-1800 पीसी/मिनट
इलेक्ट्रॉनिक नियंत्रण तंत्र: पीएलसी (XINJE XC3-42R-E)
टच स्क्रीन आकार: 10.1"
वीएफ इन्वर्टर: XINJE VB5-21P5, 220V, 1.5KW
लागू बिजली की आपूर्ति: एसी 380V, 50Hz, 3-चरण
वेल्डिंग विद्युत आपूर्ति: डीसी 490-530V
वेल्डिंग करंट: 1000-2000A (द्वितीयक पक्ष)
मूल्यांकित शक्ति: 8KW
अधिकतम शक्ति: 20kW
संपीड़ित हवा: ≥ 0.4-0.8एमपीए
ठंडा पानी का दबाव: 0.1-0.2 एमपीए
DIMENSIONS: 2650 x 900 x 2000 मिमी
प्रमुखता देना:

Fully Automatic Coil Nail Collator

,

1.5KW Power Coil Nail Making Machine

,

PLC Control Nail Collator Machine
मूलभूत जानकारी
उत्पत्ति के प्लेस: जियांग्सू, चीन
ब्रांड नाम: DURA
भुगतान & नौवहन नियमों
उत्पाद विवरण

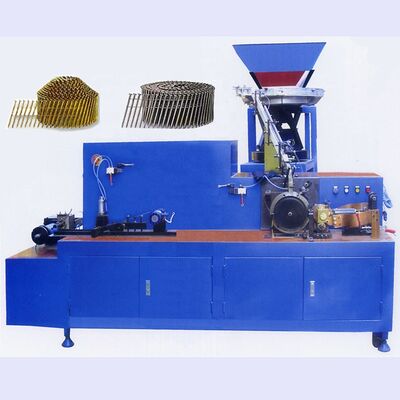

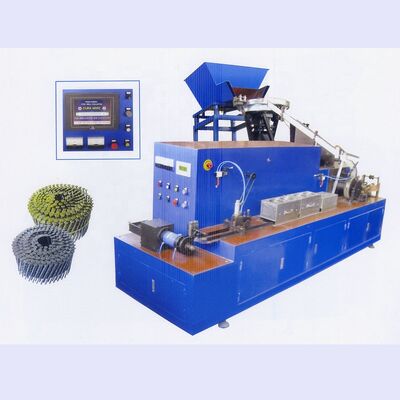

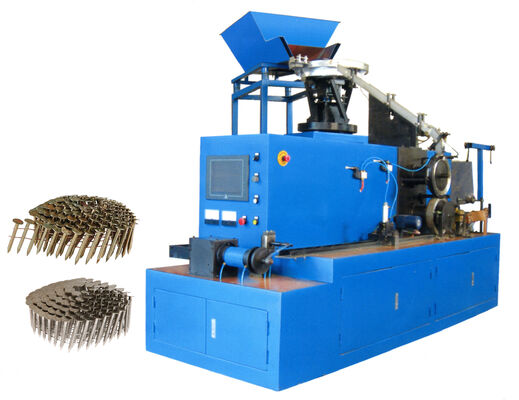

Coil Nail Collator Machine
Advanced automatic welding equipment for efficient coil nail production, featuring our latest 3rd generation technology with continuous improvements based on user feedback and technical expertise.
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 0 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 1
Operation Process
Disordered wire nails or roofing nails are fed into the vibrating feeder, where they align along the spiral passage and travel through a downward groove to the welding wheels. Two copper-plated wires are welded to the nails at a precise 15°-16° angle. The welded nails are then coiled to a fixed length and cut, forming either flat-top or cone-top coil shapes.
An optional rust-proof acrylic resin/lacquer dipping and drying unit can be integrated between welding and coiling processes. Finally, each coil is manually bound with a rubber band.
Technical Specifications - Model CNC-N3
Model CNC-N3 Applicable Nail Types Common wire nails with smooth, annular, twisted shank
Applicable Nail Sizes Ø1.8-2.5mm/25-75mm
Ø2.7-4.0mm/75-100mm		 Capacity 1250-2000 pcs/min
800-1800 pcs/min
Electronic Control System PLC: XINJE XC3-42R-E Touch Screen XINJE, 10.1"
Coil Specifications Angle: 15°-16°
Nails per coil: 200-400
Welding wires: Copper coated steel wire		 VF Inverter XINJE VB5-21P5, 220V, 1.5KW
Applicable Power Supply AC 380V, 50Hz, 3-phase (others available upon request) MCU AT89C52 (ATMEL, USA)
Welding Power Supply DC 490-530V Compressed Air ≥ 0.4-0.8Mpa
Welding Current 1000-2000A (secondary side) Cooling Water Pressure: 0.1-0.2Mpa
Rated Power 8KW Net Weight Approx. 1500kgs
Max Power 20KW Dimensions 2650 x 900 x 2000mm
Technical Specifications - Model CNC-N4
Model CNC-N4 Applicable Nail Types Common wire nails with smooth, annular, twisted (spiral thread) shank
Applicable Nail Sizes Ø1.8-2.5mm/25-75mm
Ø2.7-4.0mm/75-100mm		 Capacity 1250-2000 pcs/min
800-1800 pcs/min
Electronic Control System PLC: XINJE XC3-42R-E Touch Screen XINJE, 10.1"
Coil Specifications Angle: 15°-16°
Nails per coil: 200-400
Welding wires: Copper coated steel wire		 VF Inverter XINJE VB5-21P5, 220V, 1.5KW
Applicable Power Supply AC 380V, 50Hz, 3-phase (others available upon request) HF Spot-Welding Controller GY-2000
Welding Current Max. 100-1000A (secondary side) Compressed Air ≥ 0.4-0.8Mpa
Rated Power 20KVA Cooling Water Pressure: 0.1-0.2Mpa
Max Power 40KVA Net Weight Approx. 1500kgs
Main Motor 0.75KW Dimensions 3000 x 900 x 2000mm
Technical Notes
(1) Many Chinese users prefer 15.5° angle to accommodate finished coil nails to air guns with 15° or 16°, otherwise an extra S.S. Nail Holding Wheel must be ordered separately.
(2) Recommended welding wire specifications for common coil nails: Copper coated welding wires with diameter 0.6-0.8mm, tolerance +0.01/-0.02mm, tensile strength 300-365 Mpa, elongation ≥ 12%. Stainless steel coil nails require stainless steel welding wires.
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 2 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 3 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 4 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 5
Customer Support Services
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 6 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 7
After-Sales Services
  • Machine installation training
  • Machine operation training
  • Overseas engineer service support
Company Profile
Founded in April 2011, WUXI TRIPOD MACHINERY was established to meet diverse customer demands with optimized service. With extensive export experience and technical expertise, we have successfully supplied products to Southeast Asia, the Middle East, Africa, East Europe and South America. Today we handle both export business with annual turnover exceeding $3 million and import operations.
Our Mission
We strive to be the eyes of purchasers, brain aide of decision-making and hand of inspection on finished products.
Our Philosophy
Effort forms the foundation of ongoing business, while credit creates the essence of trade expansion.
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 8 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 9 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 10
